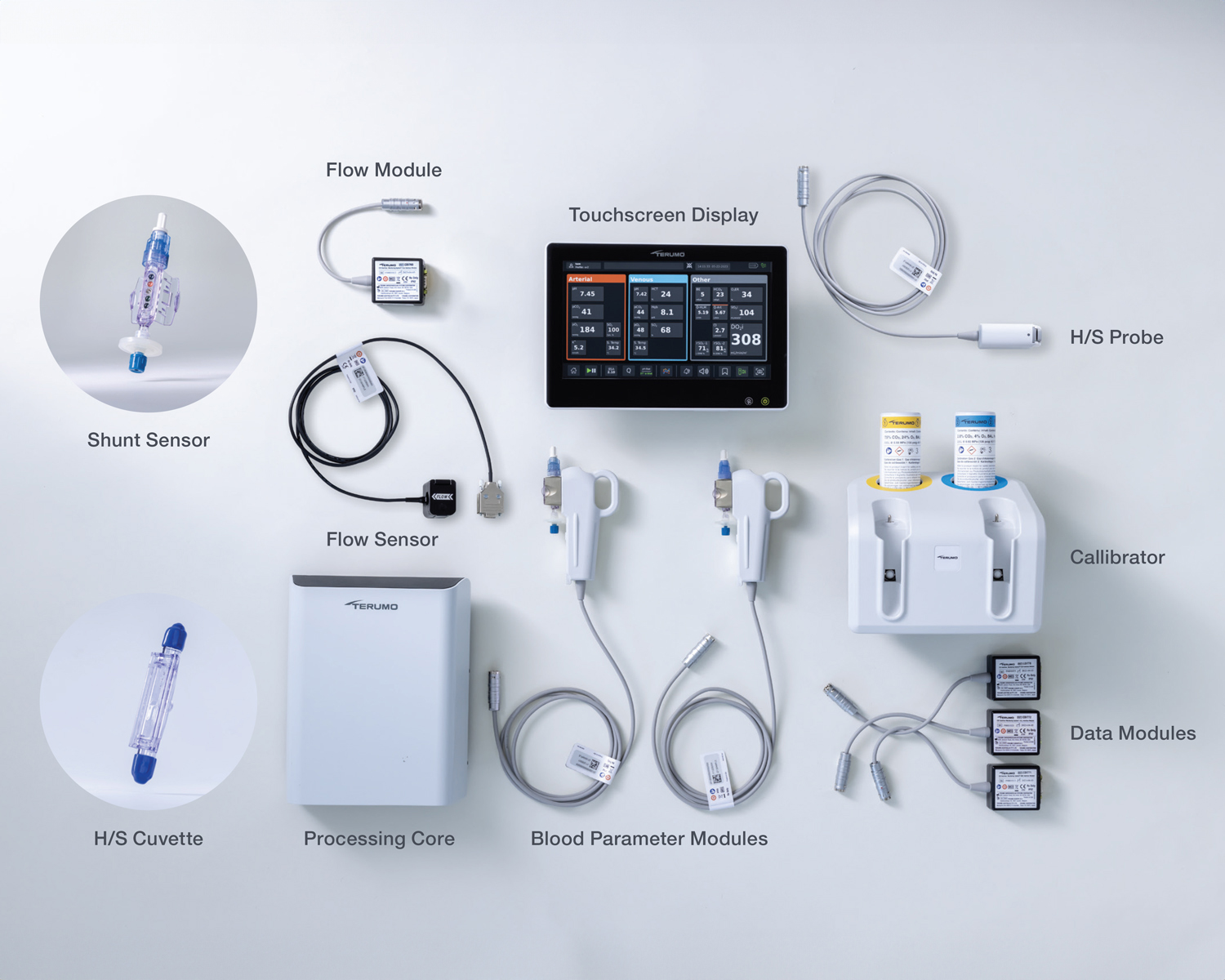

The Core serves as a connectivity hub, routing information from the Blood Parameter Module (BPM), Hematocrit/Oxygen Saturation (H/S) Probe, Flow Sensors and Interface Modules to the Touchscreen Display. May be conveniently mounted vertically or horizontally to the HLM or can be used on a flat surface.

Graphical user interface and touchscreen technology provide quick access to clinician-defined customisable parameters and view configurations. Its compact, low-profile display lends to maximizing the view of the operative field.

The BPM can be employed in arterial or venous applications. Light emitting diode (LED) indicator lights display the assignment in red or blue. The housing has been designed for usability allowing smooth insertion to the Calibrator slot.

The H/S Probe can be employed in arterial or venous applications. LED indicator lights display the assignment in red or blue. The spring clip was designed with user-friendliness in mind and can be detached for cleaning purposes.

Optional CDI OneView System Flow Sensors provide measured flow from the extracorporeal circuit. Directly measured flow is more accurate than calculated arterial flow from a roller pump. Blood flow rate is used to calculate critical GDP parameters. In pediatric cases with multiple circuit shunts, measured flow is highly desirable.

The Flow Module interfaces the Flow Sensor and the Core. All available sizes of CDI OneView System Flow Sensors can be used with the Flow Module. For multiple flow readings during a single surgical case, additional Flow Modules are required.

Rapid two-point gas calibration ensures the Shunt Sensor is operating according to designated specifications. The new small footprint and built-in handle provide transportability.

• The HLM Data Module accepts flow input from the pumping system to use for calculations and allows the blood flow value to display on the CDI OneView System.
• The rSO2 Module allows values from the Medtronic INVOS™, Edwards ForeSight Elite®, and Nonin SenSmart® to stream and display on the CDI OneView System.
• The Data Management System (DMS) Module allows the CDI OneView System data to stream to external data management systems or electronic medical records (EMR).

• Proprietary optical fluorescence technology is used to measure arterial and/or venous pH, arterial and/or venous pCO₂, arterial and/or venous pO₂, K⁺, and blood temperature.
• Simple installation into the shunt line using luer connections.
• May be added after the initiation of bypass, facilitating quick set up in emergency cases.

• Optical reflectance technology provides accurate readings of arterial and/or venous SO₂, HCT, and Hgb.
• The H/S Cuvette easily clips to the H/S Probe.
• H/S Cuvettes are available in three sizes: ¼" x ¼", ⅜" x ⅜", and ½" x ½".
